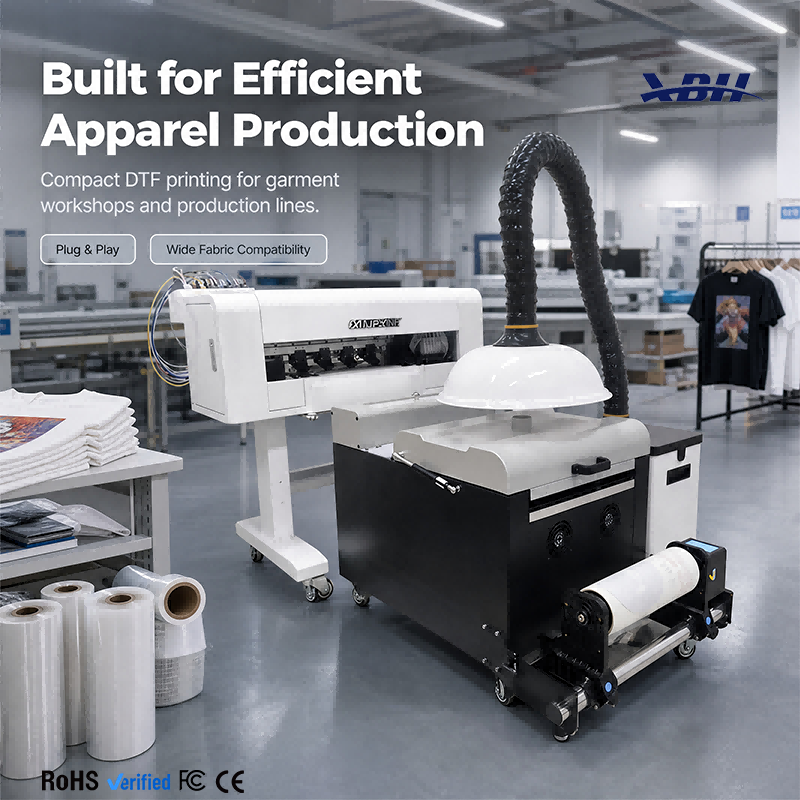

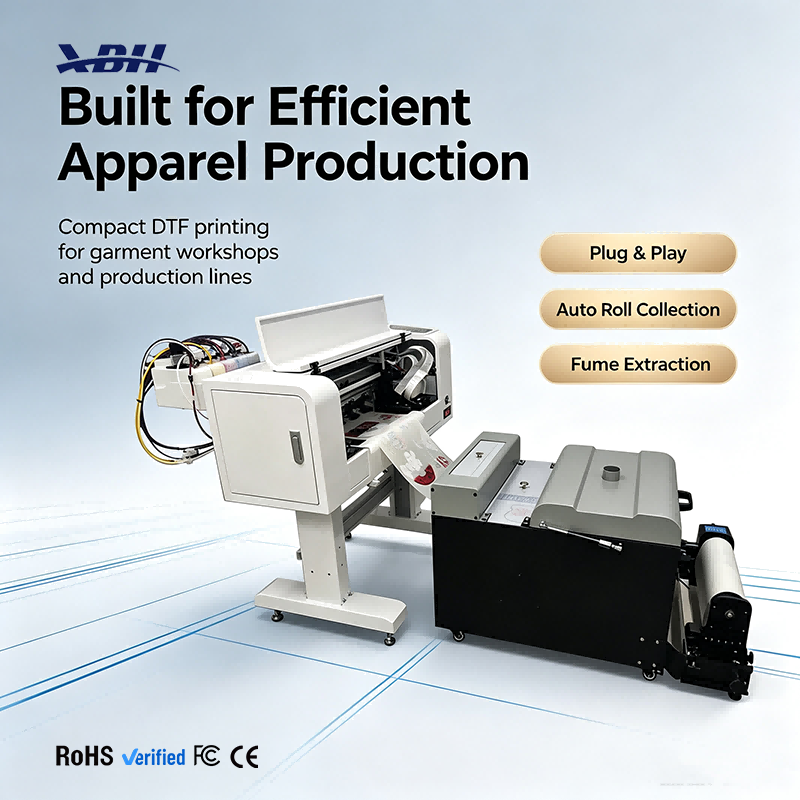

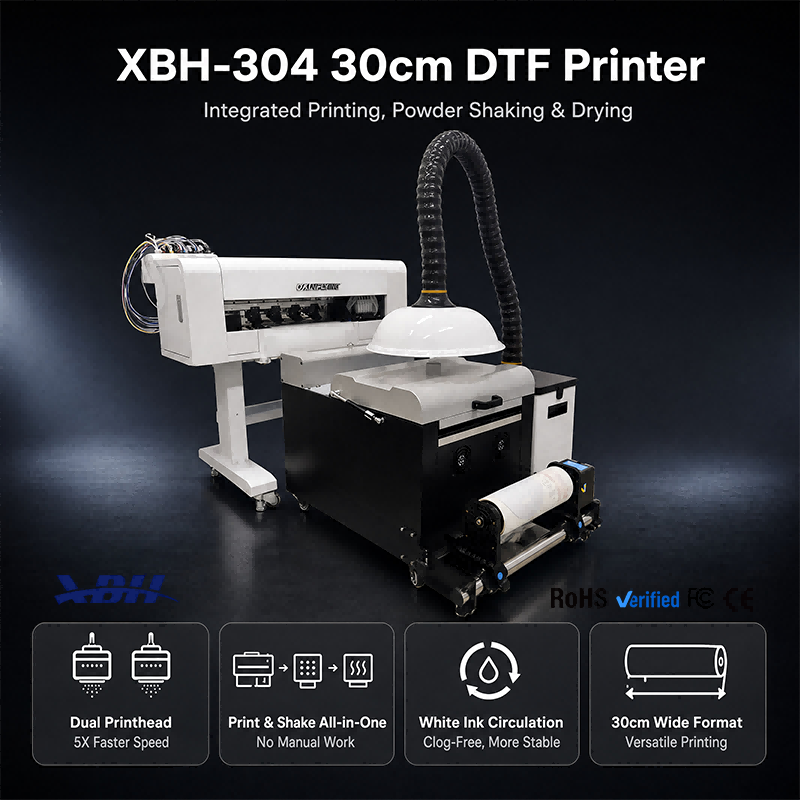

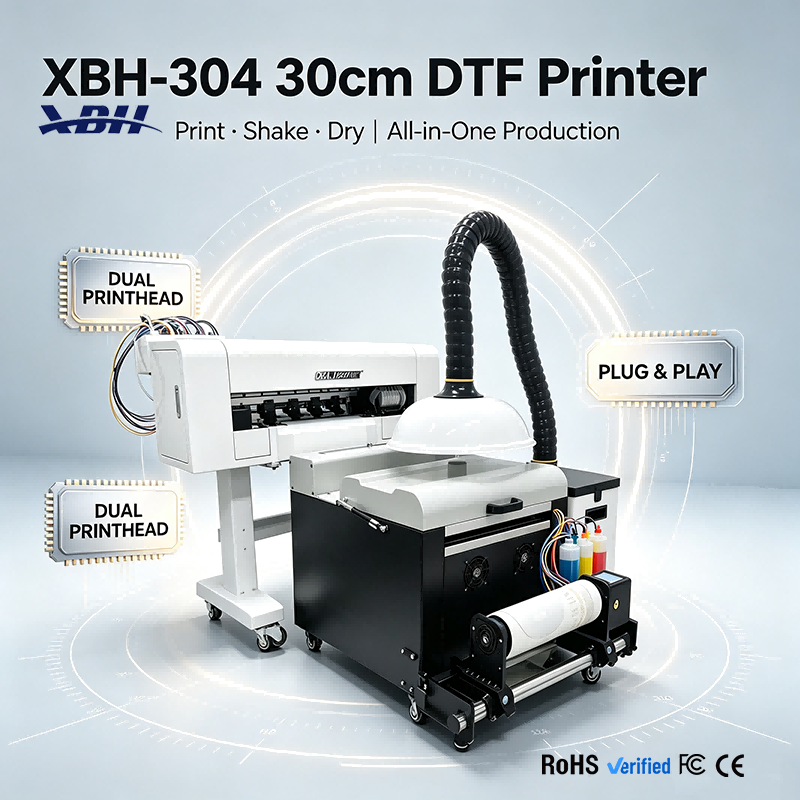

XBH-304 30cm DTF Printer - All-in-One Printing Powder Shaking & Drying

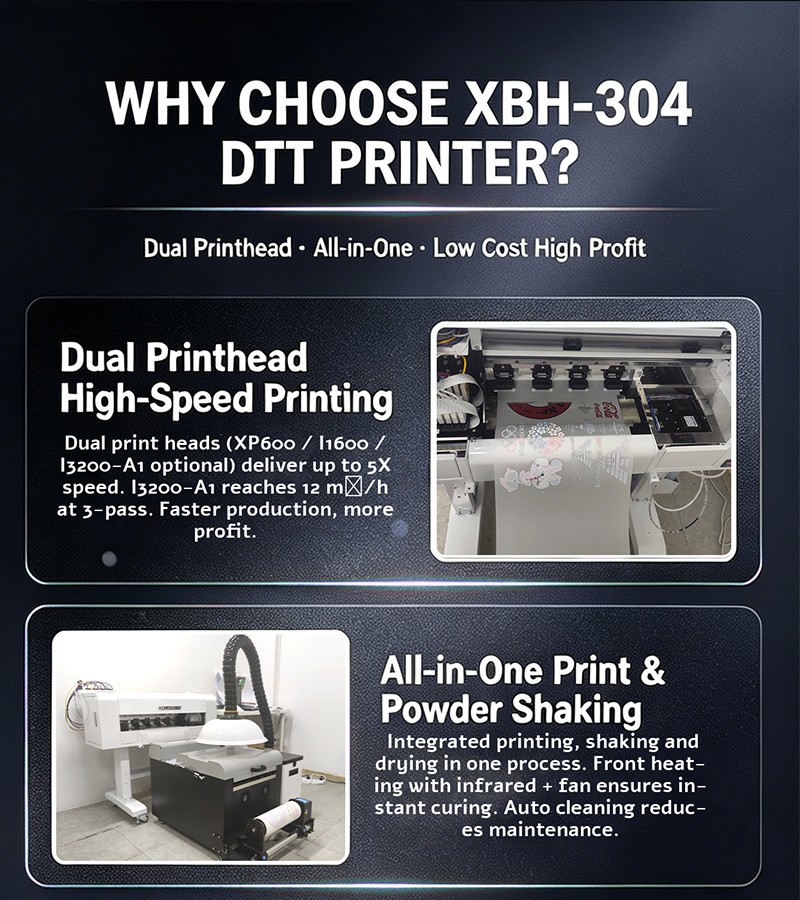

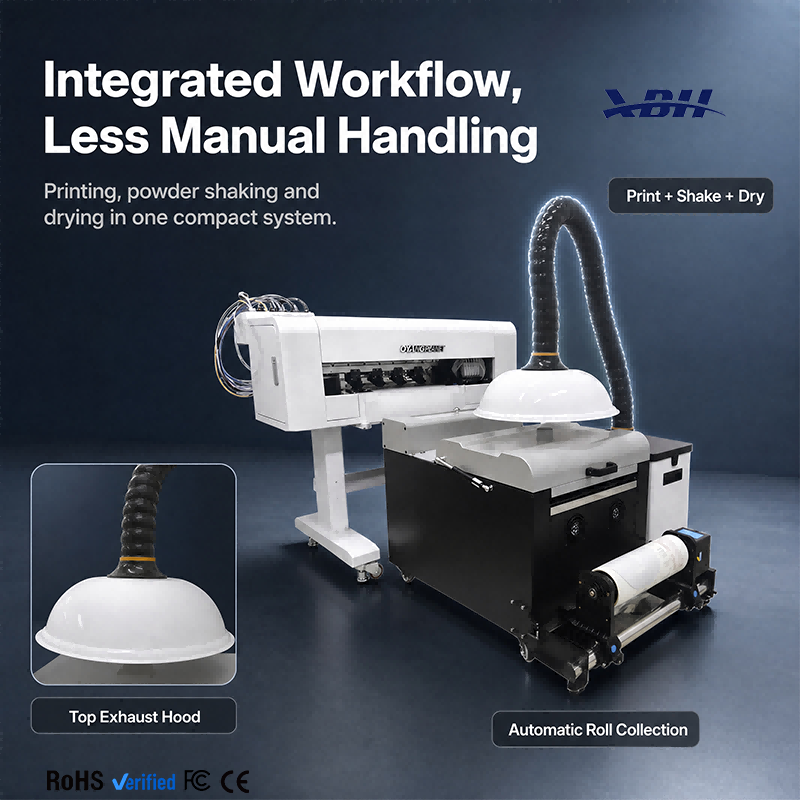

XBH-304 30cm DTF integrates printing, powder shaking and drying in one continuous process. Film prints, gets coated with adhesive powder, and cures with infrared + fan heating — all automatically. No manual handling between steps, less labor, cleaner workflow, ready-to-press film straight from the machine.
Q: How does the all-in-one print, shake and dry process work?

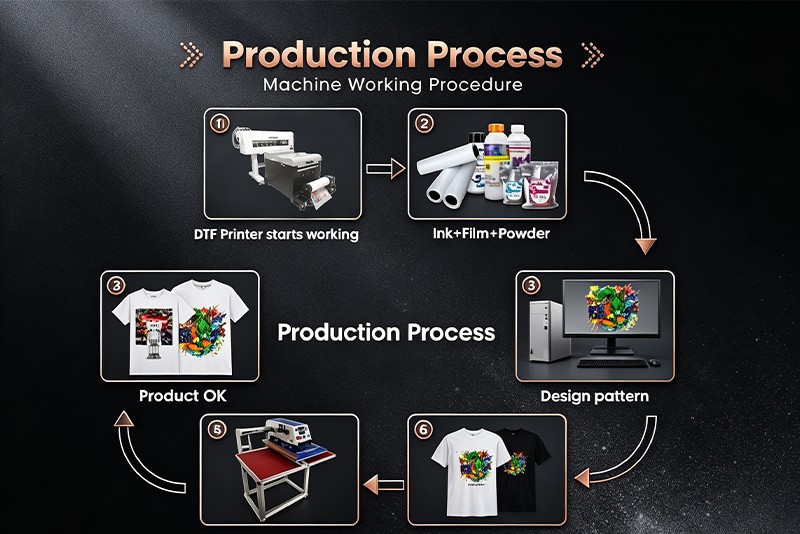

A: The machine handles the entire DTF film production in one continuous line. First, the printhead section prints your design onto the PET film with CMYK+W ink. The printed film then feeds automatically into the powder shaking unit, where hot melt adhesive powder is evenly applied to the wet ink. Excess powder is removed and collected for reuse. Finally, the film passes through the drying section, where infrared heating combined with fan airflow cures the powder and ink, creating a stable, ready-to-press transfer film. The whole process runs continuously without manual intervention between steps.
Q: What are the benefits of having printing and powder shaking integrated?
A: With separate machines, you'd print the film on one machine, then manually carry it to a separate powder shaker, then to a dryer — handling the wet film between each step, which risks smudging, dust contamination and misalignment. With the integrated system, the film feeds directly from printing to shaking to drying without ever leaving the machine. This eliminates manual handling, reduces labor time, and produces cleaner, more consistent results. The powder is applied while the ink is still wet, which ensures proper adhesion, and the drying happens immediately so the film is stable and ready to use right away.
Q: How does the infrared + fan drying system work?
A: The drying section uses infrared heating elements to generate heat that cures the hot melt powder and sets the ink, while built-in fans circulate air to ensure even, consistent heating across the full width of the film. This combination ensures that the powder melts and adheres properly to the ink, creating a durable transfer that will press well onto garments. The front heating design means the film is cured as it exits, so it comes out dry and stable — no sticky, uncured powder that can smudge or transfer prematurely. The instant curing also means you can immediately roll up the finished film or use it right away for heat pressing.
Q: Does the integrated system reduce maintenance compared with separate machines?
A: Yes, in several ways. The auto cleaning function helps keep the printhead and powder system clean with minimal manual effort. The excess powder is collected in a hopper for reuse, which reduces waste and keeps the working area cleaner. Because the film doesn't leave the machine between steps, there's less exposure to dust and environmental contaminants, which means fewer print quality issues. Having one integrated machine also means one control panel, one power connection, and one maintenance routine instead of managing three separate pieces of equipment. For a small shop, this simplicity means less time spent on setup and maintenance, and more time producing saleable transfer films.
