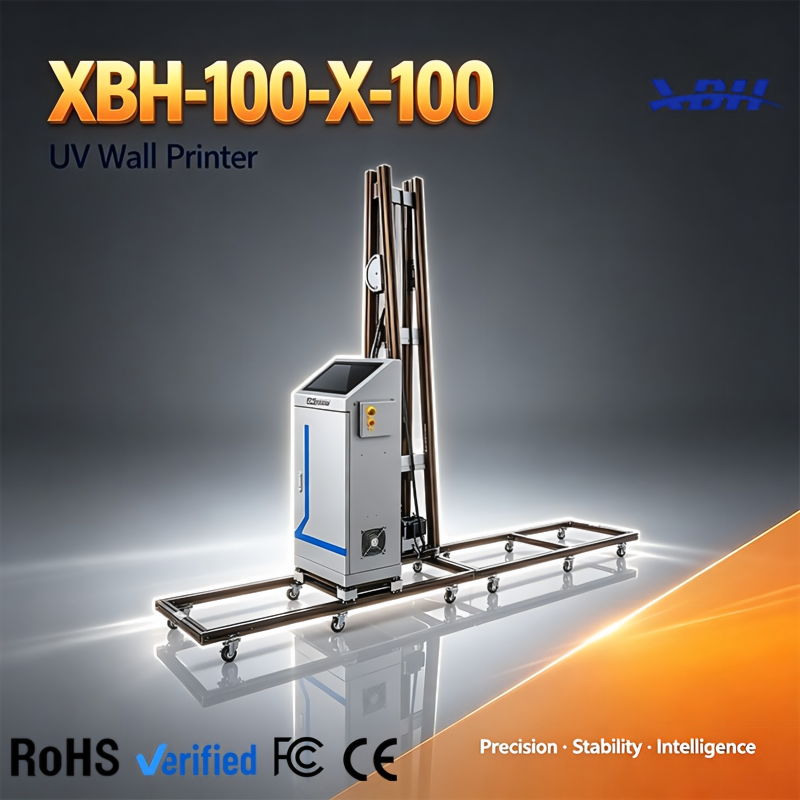

XBH‑100‑X‑100‑UV Wall Printer | Indoor Outdoor Vertical Wall Printing Machine

Brand XBH

Product origin guangdong

XBH‑100‑X‑100‑UV Wall Printer delivers stable vertical printing performance, supports multiple wall surfaces, adopts mature UV ink system for fast curing, fits small‑to‑medium decoration project demands.

XBH‑100‑X‑100‑UV Wall Printer | Indoor Outdoor Vertical Wall Printing Machine

XBH‑100‑X‑100‑UV Wall Printer

vertical wall printer

wall mural printing machine

product name
XBH wall printing machine
warranty
1 year
Control method
Wired/wireless printing
Printing software
Genuine industrial machine printing software
Ink type
uv ink

Ink color
1pc DX8 head
2pcs DX8 head
CMYK
CMYK+W
Transportation and carrying
Portable
Power
No load 20W, maximum 250W
Surface tracking
Hyperboloid banner sensor, up and down bidirectional sensing
Ink supply system
Single-color single-supply for negative pressure system,4-color ink bin integrated
Printing size
2.5m x any width (default), other heights can be customized
Construction noise
Standby<20dBA,Drawing<60dBA
Support pictures
Photos taken by mobile phone, camera and Internet
Voltage
220VAC/380VAC


Applicable medium
Wall surface:Putty wall surface,Latex paint wall,Big white wall,Imitation porcelain wall,Rice paper, Wall clothing,Painted glaze,Shell powder,Color grain paint and other walls

Other media:Glass, tile, board,Acrylic,PVC and metal plates, etc.

Direct printing, print and dry without waiting
Image Format
PSD,CDR,JPG,JPEG,PNG,BMP,TIFF,EPS,AI and PDF,etc.
Color drawing technology
Micro Piezo Inkjet Technology,Variable ink drop,High fault tolerance feathering technology,
Automatic memory recovery technology for construction interruption
Operating environment
-20℃-50℃(-4°F-122°F),10%-70%,Relative humidity, non-condensing state
Print resolution
360×720dpi/720×1080dpi/720×1440dpi/1080×1440dpi/1440×2880dpi
Operating environment
-20℃-50℃(-4°F-122°F),10%-70%,Relative humidity, non-condensing state
Storage environment
-21℃-50℃(-22°F-140°F),10%-70%,Relative humidity, non-condensing state
Operating platform
Windows XP/7/8/9/10
Certification qualification
GPC,International test qualified(GB18582-2001、GBT9756-2001)、CE
Print mode
PASS
㎡/h
Fast mode
A
24
Production mode
B
18
Quality mode
C
12
HD mode
D
9
Package size
162*84*68cm
Packing weight
185KG

The key components
Printhead
DX8/DX7/DX11
1pc/2pcs
Motor
3 imported intelligent servo motors+decelerator
Main board
8-core high-speed CPU, 8GB Memory, high-speed USB I/O
Wall detection
2 Nano distance detectors
UPS Power Supply
Ultra strong uninterruptible power supply,power failure endurance 5hous
Power-off memory
Power-off memory function
Ink supply technology
Negative pressure system ink supply,No ink extraction required
Laser positioning
Precise infrared laser positioning system
Y-axis Guide
High strength precision rail
4 sections 5m
X-axis Guide
Imported linear drive module
Machine language
Chinese/English
(Other languages can be customized)
Gift Gallery
Gift 5T Gallery


XBH‑100‑X‑100‑UV Wall Printer

vertical wall printer

wall mural printing machine

XBH‑100‑X‑100‑UV Wall Printer

vertical wall printer

wall mural printing machine

XBH‑100‑X‑100‑UV Wall Printer

vertical wall printer

wall mural printing machine

XBH‑100‑X‑100‑UV Wall Printer

vertical wall printer

wall mural printing machine

XBH‑100‑X‑100‑UV Wall Printervertical wall printer

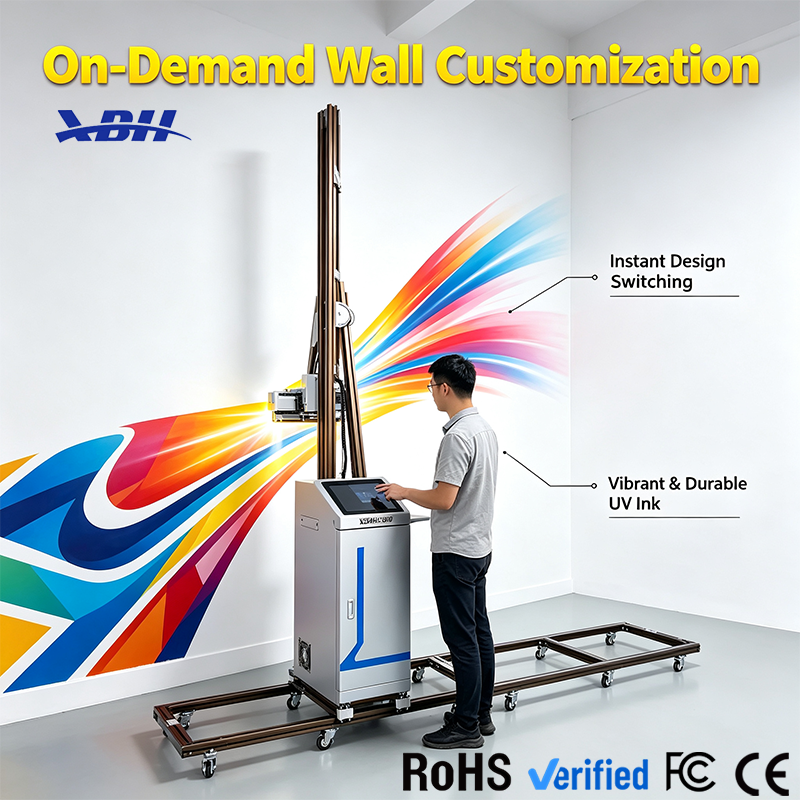

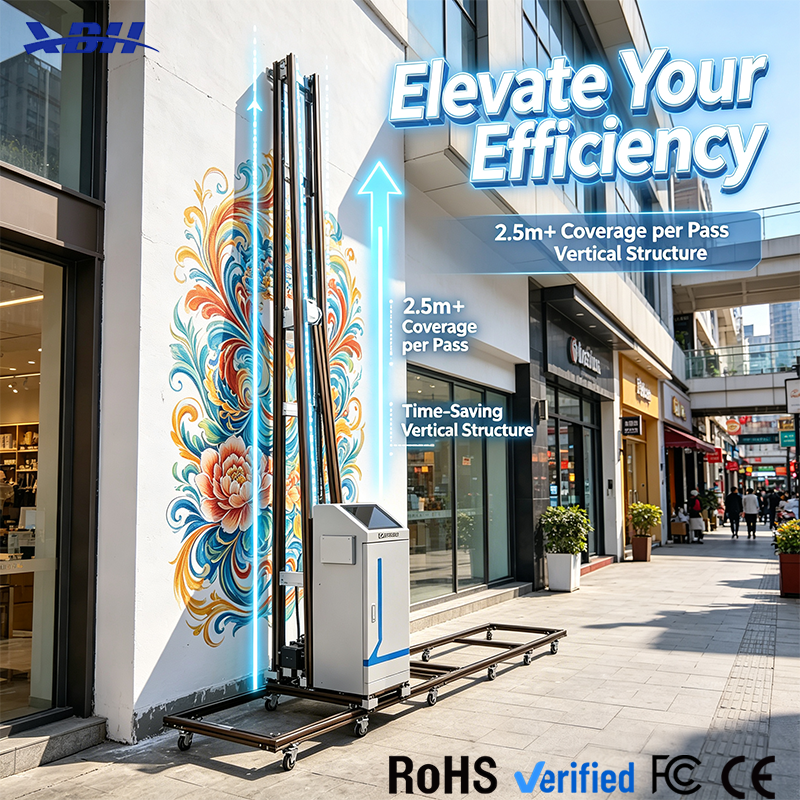

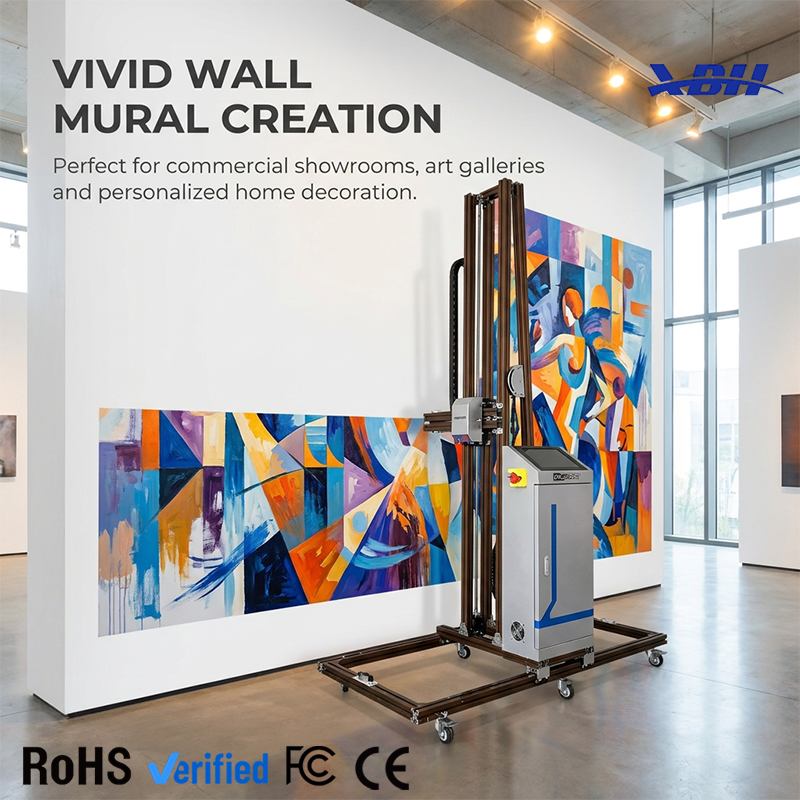

Q1: What real‑life job scenarios is this vertical wall printing unit built to handle?A1: This hardware serves decor teams that execute work directly at customer premises. Instead of manufacturing wallpaper prints inside a remote shop, crews bring the equipment onsite and create murals right on original wall surfaces. Home remodels, small retail store interior refresh, and community public art assignments make up its primary application scope.


Q2: How do teams move this mural‑printing hardware between different project locations?A1: Main machine body and guiding rails adopt split assembly design. Operators can take key modules apart, load them onto standard delivery vehicles, then reassemble once arriving at new job sites. No oversized special‑purpose trucks are required for regular transit tasks.


Q3: About onsite assembly, how much time should field crews allocate for preparation work?A1: When working over flat, level ground, experienced field staff can finish rail laying, mechanical leveling plus system self‑check within around 30 minutes. Actual consumed time will shift according to ground conditions. Uneven flooring calls for extra fine‑tuning before printing can commence.


Q4: Are there any environmental best practices while running this mural‑printing unit?

A1: Try to keep the operating zone away from heavy dust accumulation. Excessive ambient moisture will compromise ink curing performance. Maintain basic site ventilation throughout operation; this simple practice improves overall working conditions for field technicians.


Q5: Do operators need hand‑drawing talent to produce wall art with this gear?

A1: Manual painting skill is completely unnecessary. Staff only need finished digital graphic assets, feed those files to the system, and let the hardware handle vertical image spraying automatically.
